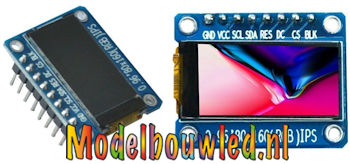

Mini TFT Display 0.96inch


Modelbouwled
Disp-0-96-c
Bestel
  • Beschrijving
  • Meer
 SIZE 0.96inch Display Mode Normally black IPSDisplay Format Graphic 80RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution 80RGB*160 Dots
LCD Active area 10.8 (W)*21.7 (H)
Dot pitch 0.135(H) x 0.1356(V) mm
Viewing Direction All View
Operating Temperature -20~70°C
Mini TFT Display 0.96inch
